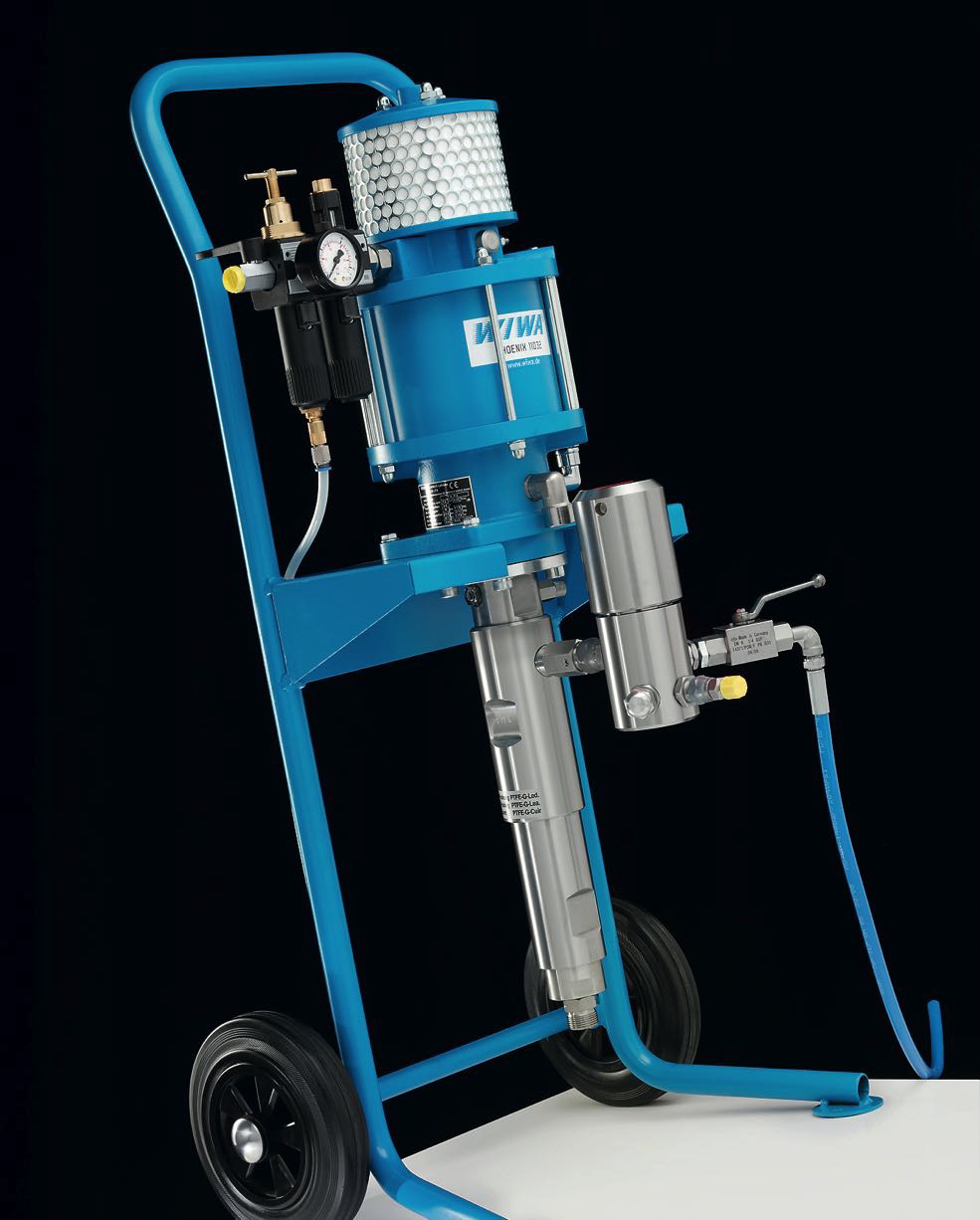

Wiwa Phoenix



  • The most cost-effective dyeing machines for craft and industry.


Wiwa phoenix is ​​a high performance multifunctional unit for painting wood and metal as well as for other coating applications.


  • Long stroke double-stroke pump and fixed seals.
  • Maintenance free engine
  • Complete separation of the motor from the pump with a closed lubrication chamber to prevent the paint from drying on the piston.
  • High durability and reduced maintenance requirements thanks to dual chrome pistons, carbide valve and stainless bearings.
  • Trouble-free operation thanks to the dual filter system.
PHOENIX GX

MODEL

A: AIRLESS, C: COMBI, HJ: HOT JOB

105030

A / C / HJ

140053

A / C / HJ

105018

A / C / HJ

140032

A / C / HJ

140020

A / C / HJ

20042

A / C / HJ

20065

A / C / HJ

Compression ratio 30:1 53:1 18:1 32:1 20:1 42:1 65:1
Maximum free flow (Lt/min) 2,6 2,6 4,3 4,3 6,7 6,7 4,3
Maximum inlet air pressure (bar) 8 8 8 8 8 8 7
Maximum operating pressure (bar) 240 424 144 256 160 336 455
