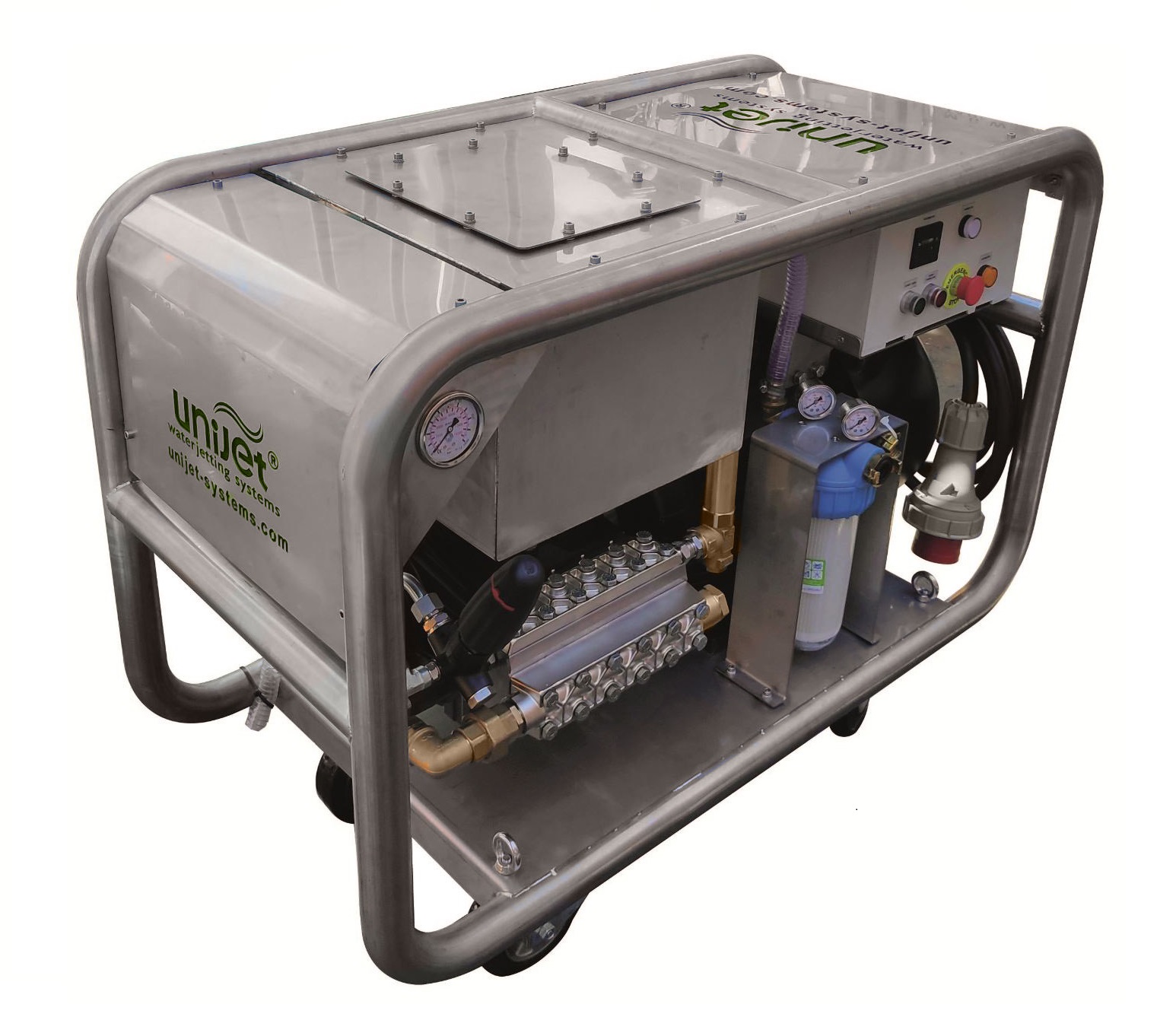

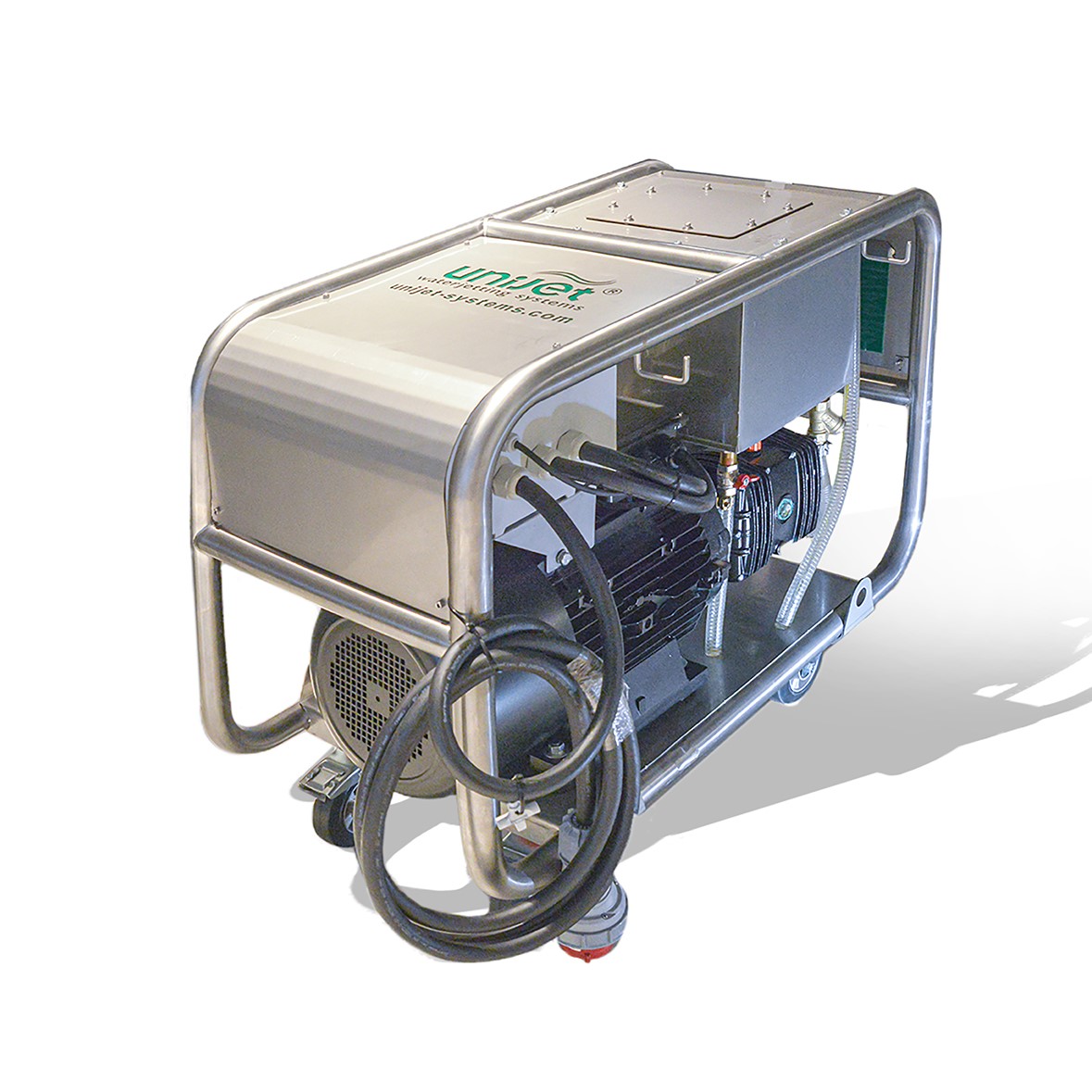

UNIJET E 600 - 30 Lpm

Waterjetting unit with sandblasting and hot water compatibility up to 600 bar, driven by an electric three phase motor for the Shipping, Industrial and Construction sector.


UNIJET waterjetting applications:

  • Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
  • Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
  • Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
  • Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
  • Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, et.c

The machines are covered by a 2-year factory warranty with unlimited use.

Technical characteristics of UNIJET 600E30:

  • Stainless steel 304L frame
  • IP55 electric motor
  • Motor efficiency class IE1
  • Automatic star delta starter
  • Direct drive pump
  • Stainless steel crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump oil level indicator
  • Pump max. water temperature at 45˚C
  • Thermal valve
  • Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
  • Safety valve (set 10% above operating pressure) for pump protection against overpressure10-micron inlet water filter for long service life of the pump
  • Inlet pressure switch against poor water flow
  • High pressure gauge for accurate display readings
  • Certification of 45’ machine test run on max. operating pressure
TECHNICAL SPECIFICATIONS
Model 600 jet-e
Maximum working pressure 600 bar
Maximum water flow 30 lit/min
Engine 37kW
Engine performance 50 hp
Pump Pratissoli
Revolutions per minute 800rpm
Weight 325 Kg
Dimension 115x80x90 cm

The machine is delivered with the following standard equipment:

  • High pressure hose 10m
  • High pressure gun
  • High pressure lance
  • Waterjetting nozzle flat jet
  • Manual and book service
