Coating Thickness Meter TOP-CHECK




Coating Thickness Meter TOP-CHECK

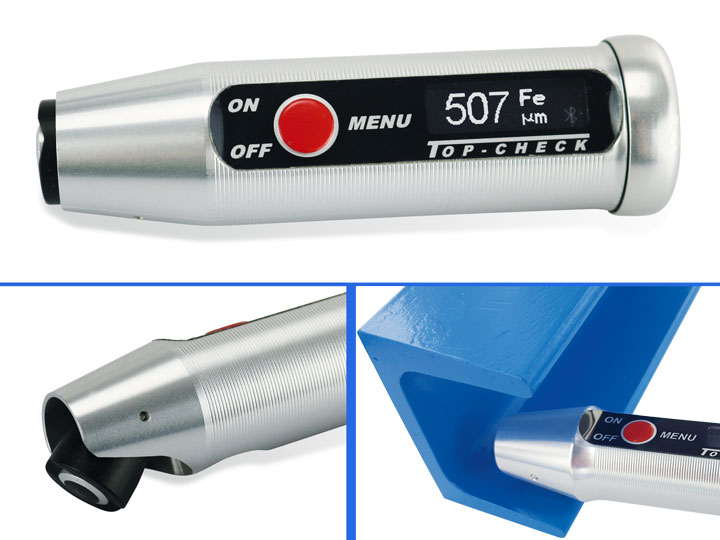

With the integrated, world-wide unique 90° swivel-mounted probe of the List-Magnetik TOP-CHECK coating thickness meters, you always carry out precise measurements. The compact, lightweight devices are barely larger than a probe and are therefore ideal for on-site applications in areas that are difficult to access. For interference-free measurements in harsh environments, the handy metal housing is splash-proof, in accordance with IP 64. Optionally, we also offer coating thickness tester equipment with flow-water protection. The measuring probe has a wear-resistant ruby probe pole for a long service life with frequent measurement on rough surfaces.

The coating thickness gauges are very easy to use, with the press of a button, and the self-explanatory multilingual menu


Technical Data Coating Thickness Meter TOP-CHECK
Applications Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178) with TOP-CHECK FN and FN-B also measurement of insulating layers on non-ferrous metals (ISO 2360) with automatic detection of base material
Measuring probe TOP-CHECK FE/FN swivel-mounted 90°

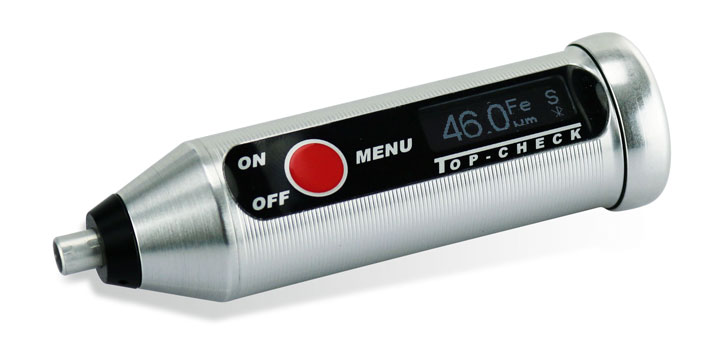

TOP-CHECK FE-1000 a springy sensing probe
Measuring range TOP-CHECK FE and TOP-CHECK FN on steel and iron: 0-5000 μm
TOP-CHECK FE-1000 on steel and iron: 0-1000 μm
TOP-CHECK FN on NFE metals 0-2000 μm
Smallest Area TOP-CHECK FE ø 4 mm, TOP-CHECK FE-1000 ø 2 mm,
TOP-CHECK FN ø 8 mm
Smallest curvature radius convex: TOP-CHECK FE 4 mm, TOP-CHECK FE-1000 1 mm, TOP-CHECK FN 6 mm
concave: TOP-CHECK FE 38 mm, TOP-CHECK FE-1000 6 mm, TOP-CHECK FN 38 mm
Calibration value 300 µm
Accuracy less than 100 μm ± 1 μm, 100-1000 μm: ± 1%, 1000-2000 μm: ± 3%,> 2000 μm: ± 5%
Resolution 1-100 µm: 0.1 µm, 100-1000 µm: 1 µm, > 1000 µm: 10 µm
Measuring units µm and mils
Environment temperature 0 - 50° C
Display illuminated high contrast graphic OLED display
Multi-lingual menu German, English
Power supply 1x 1.5 V AA Mignon
Operating time approx. 30 hours
Dimensions Ø 28 x 98 mm
Data logger 2 x 500 measurements
Statistics Count / Maximum / Minimum / Average / Standard deviation
Interface Bluetooth interface class 2

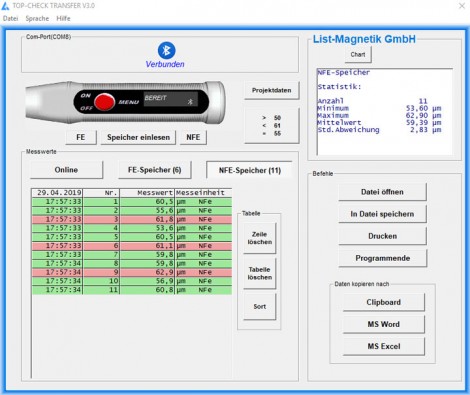

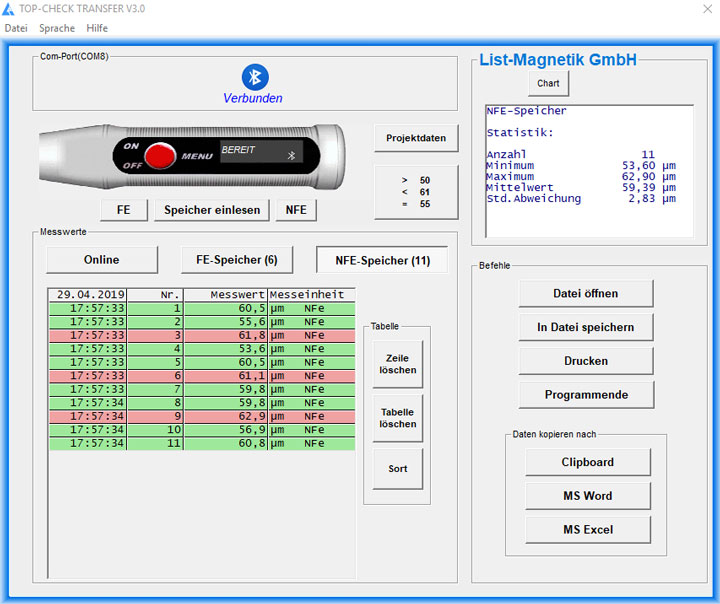

for communication with PC, TOP-CHECK App and printer
